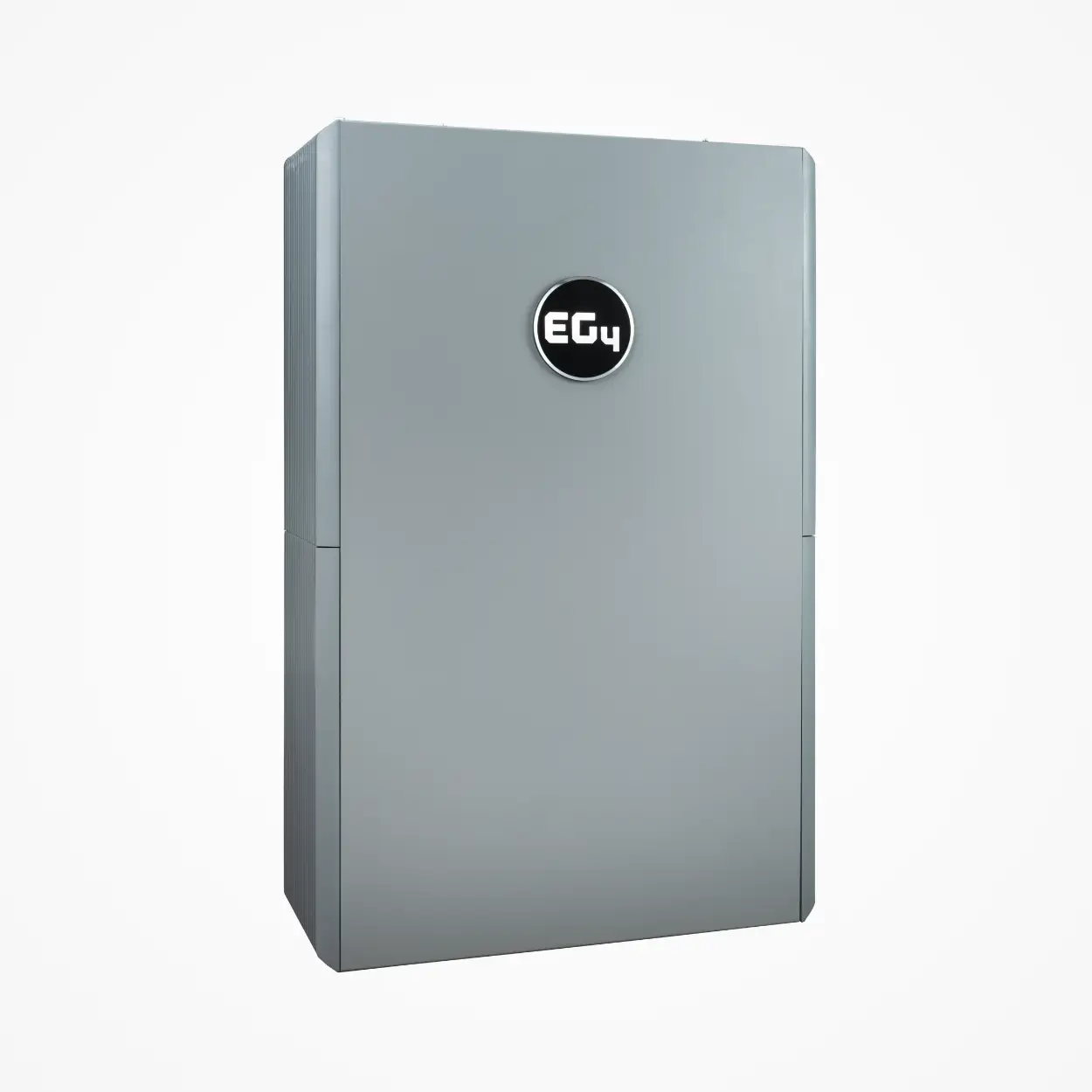

EG4® WallMount All Weather Battery

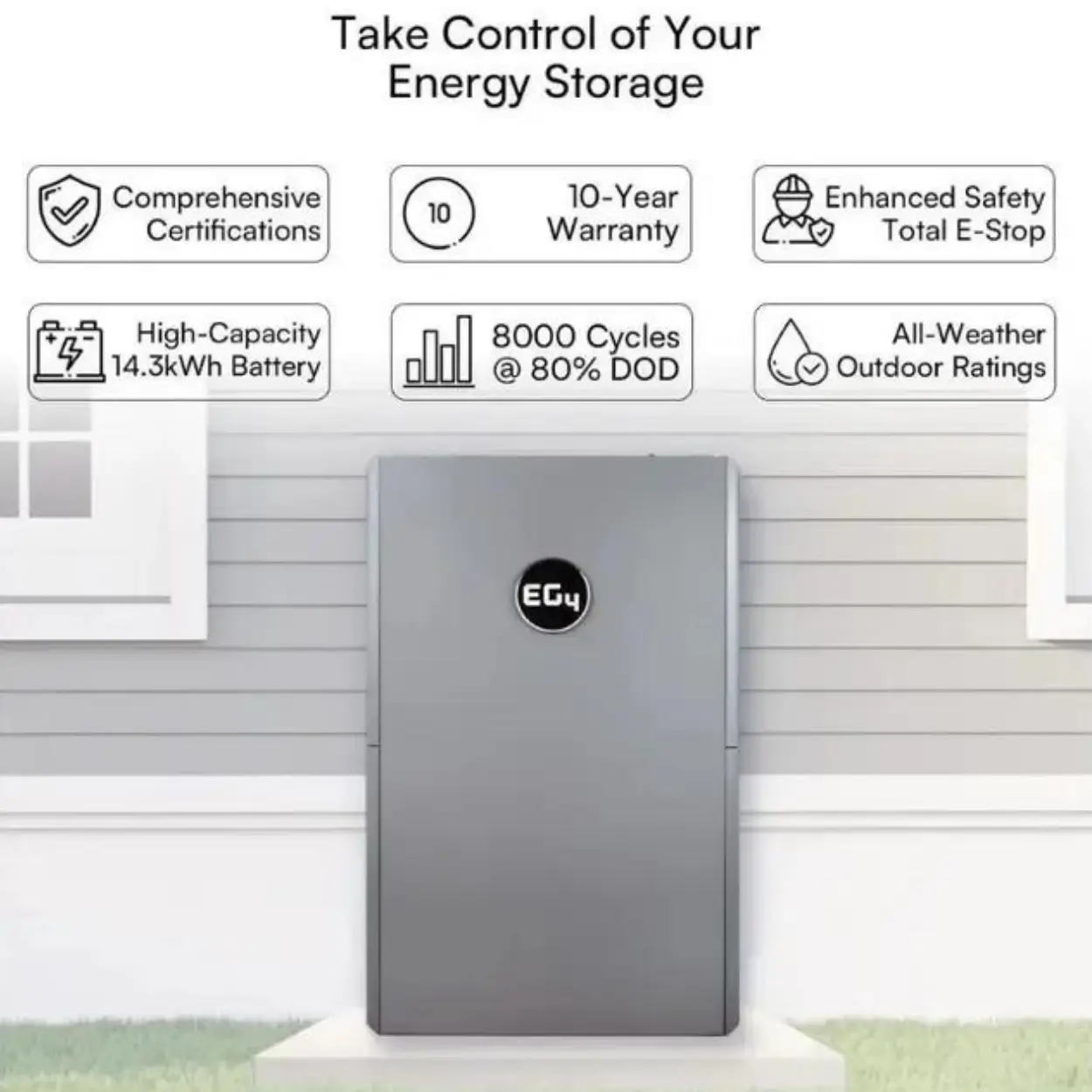

The EG4 WallMount All Weather Battery delivers a substantial 14.3 kWh of storage with a max continuous discharge of 200A. Equipped with integrated self-heating, EMP-hardening, and a 10-year warranty, it is designed to endure both natural and manmade disruptions. This battery supports over 8,000 cycles at 80% depth of discharge, providing up to 82.6 MWh in lifetime energy production.
Compatible with EG4 inverters like the 18kPV, 12kPV, 12000XP, and 6000XP, it also features secure, weather-tight quick connects, 600A busbars, dual fire arrestors, and an E-Stop for emergency shutdown. An LCD touchscreen enables easy BMS monitoring and closed-loop communication with EG4 and other select inverters.
Description
FEATURES & BENEFITS: Integrated Self-Heating Automatically heats the battery in low temperatures, ensuring reliable performance in outdoor settings. Lithium Iron Phosphate Cells: Built for reliability with superior safety performance, ideal for residential outdoor ESS applications. Advanced Battery Management System (BMS): Real-time monitoring of each cell’s voltage, overall module voltage, current, and temperature ensures optimal battery performance On-Board LCD Touchscreen: Clear BMS monitoring and selectable closed-loop communication with EG4, Schneider, Sol-Ark, Victron, and Growatt inverters Dual Fire Arrestors: Added safety with fail-safe protection against thermal runaway Weather-Tight Quick Connects: Outdoor-rated, fast, and reliable connections for secure installations Built-In 600A Busbars: Includes multiple terminals (4 positive, 4 negative), eliminating the need for external busbars when connecting multiple batteries or inverters Emergency Stop Function: Optional ESS disconnect allows for one-touch shutdown of all batteries and inverters equipped with rapid shutdown capability KEY SPECIFICATIONS: Voltage: 51.2V Capacity: 280Ah Dimensions: 34.6 × 22.3 × 9.1 in. (88 × 56.6 × 23.2cm) Weight: 308.6 lbs. (140 kg) Design Life: 8000 Deep Cycles Certs: UL 1973 Lifetime Production: 82.6MWh California Proposition 65 Warning
